맵(지도)과 방향벡터(direction vector) 본문
https://blog.naver.com/jhc9639/222289089015
[알고리즘 강의] 2주차. 그래프이론, 인접행렬, 인접리스트, DFS, BFS, 트리순회
이번주차는 그래프이론과 DFS(깊이우선탐색), BFS(너비우선탐색) 그리고 트리순회인 preorder, inord...
blog.naver.com

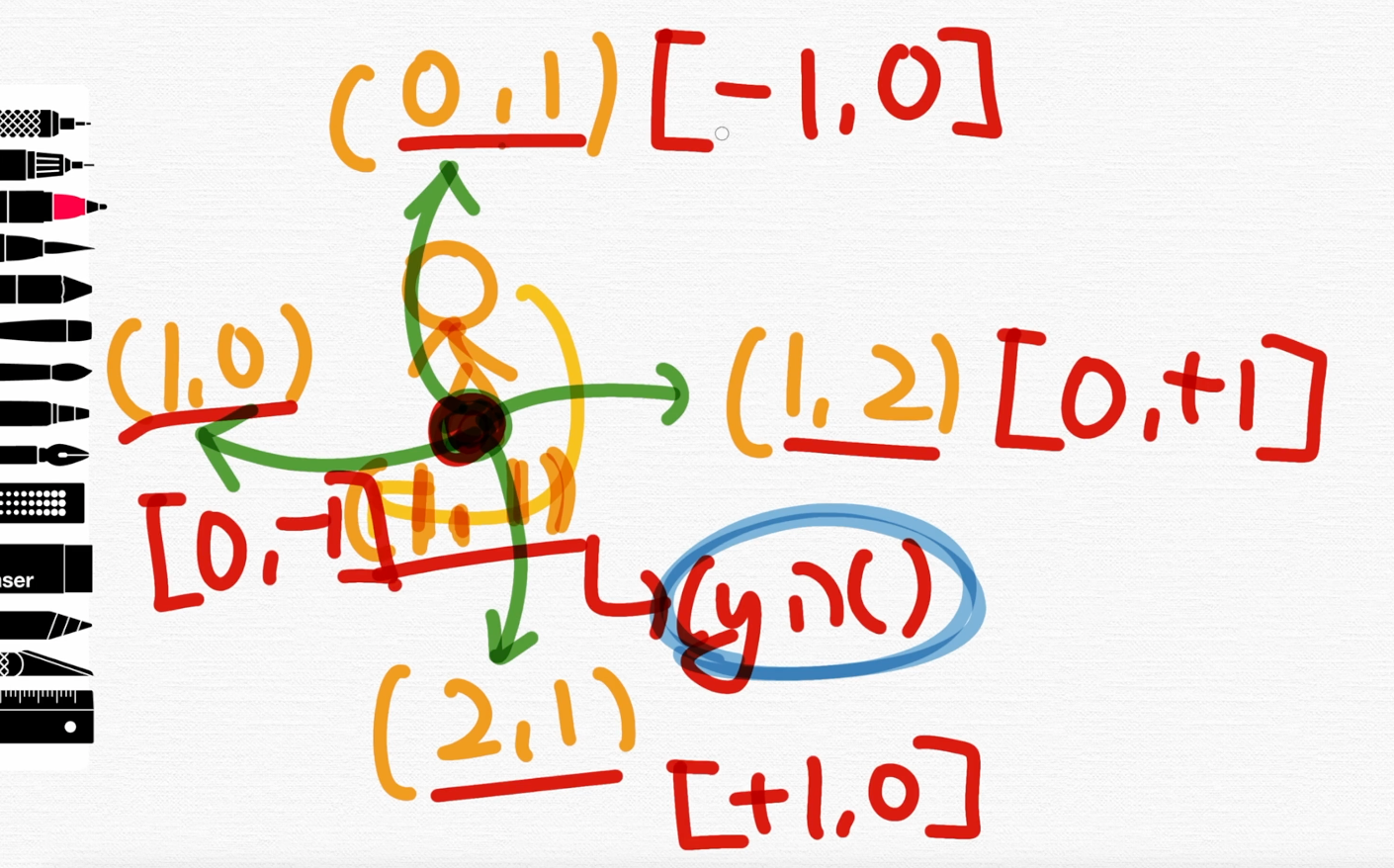

4방향(상하좌우)을 탐색!
dy[] = {-1,0,1,0};
dx[] = {0,1,0,-1};
// dy : direction y, ny : next y
for(i=0 ~4)
ny = y + dy[i];
nx = x + dx[i];
예제
Q. {0,0} 좌표에서 dy, dx를 만들어 4방향 (상하좌우)을 탐색하며 좌표를 출력하시오.
#include <bits/stdc++.h>
using namespace std;
const int dy[] = {-1,0,1,0};
const int dx[] = {0,1,0,-1};
int main(){
int y = 0,x = 0;
for(int i = 0; i < 4; i++){
int ny = y + dy[i];
int nx = x + dx[i];
cout << ny << " : " << nx <<'\n';
}
return 0;
}
Q. {0,0} 좌표에서 dy, dx를 만들어 8방향 (상하좌우 및 대각선)을 탐색하며 좌표를 출력하시오.
#include <bits/stdc++.h>
using namespace std;
const int dy[] = {-1,-1,0,1,1,1,0,-1};
const int dx[] = {0,1,1,1,0,-1,-1,-1};
int main(){
int y = 0,x = 0;
for(int i = 0; i < 4; i++){
int ny = y + dy[i];
int nx = x + dx[i];
cout << ny << " : " << nx <<'\n';
}
return 0;
}

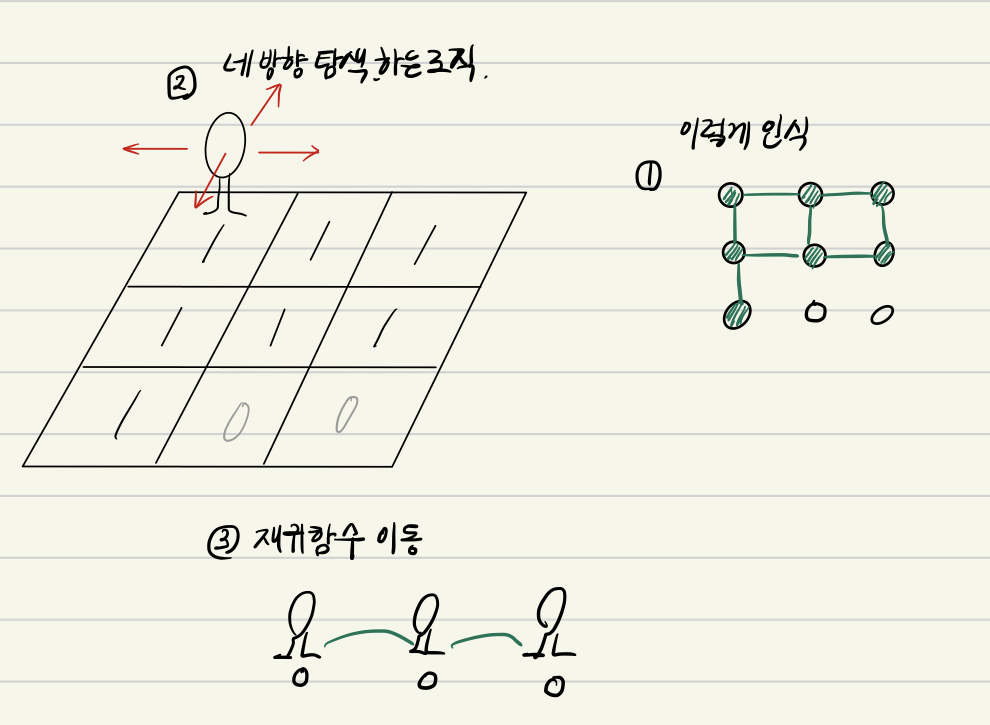

Q. 3*3맵을 입력받아야 한다.
이 맵은 1,0으로 이루어져있고 {0,0}은 무조건 1임을 보장한다.
{0,0}부터 4방향 기준으로 한칸씩 탐색해나가며 방문한 정점은 다시 방문하지 않으며 방문하는 좌표를 출력하는 코드를 구현하시오.
#include <bits/stdc++.h>
using namespace std;
const int n = 3;
int a[n][n], visited[n][n];
const int dy[] = {-1,0,1,0};
const int dx[] = {0,1,0,-1};
void go(int y, int x){
visited[y][x] = 1;
cout << y << " : " << x << "\n";
for(int i = 0; i < 4; i++){
int ny = y + dy[i];
int nx = x + dx[i];
// 1. 오버플로우, 언더플로우 방지 - 가장 먼저 선행되어야 하는 조건!
if(ny<0 || ny>=n || nx < 0 || nx >=n) continue;
// 이동할 수 있는 곳만 이동
if(a[ny][nx]==0) continue;
// 방문한 적 있다면 패스
if(visited[ny][nx]) continue;
}
}
int main(){
for(int i = 0; i < n; i++){
for (int j = 0; j < n; j++){
cin >> a[i][j];
}
}
go(0,0);
}
