[From Nand to Tetris] Project 1 (3) Multi-way variants(Or8way, Mux4Way16, Mux8Way16, DMux4Way, DMux8Way)

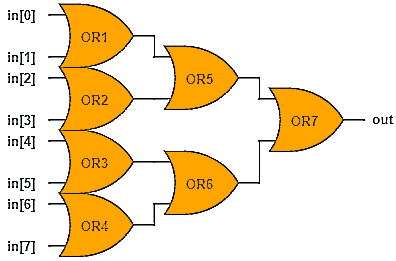

1) Or8way

/**
 * 8-way Or gate:
 * out = in[0] Or in[1] Or ... Or in[7]
 */
CHIP Or8Way {
    IN in[8];
    OUT out;

    PARTS:
    Or(a=in[0], b=in[1], out=or1);
    Or(a=in[2], b=in[3], out=or2);
    Or(a=in[4], b=in[5], out=or3);
    Or(a=in[6], b=in[7], out=or4);
    Or(a=or1, b=or2, out=or5);
    Or(a=or3, b=or4, out=or6);
    Or(a=or5, b=or6, out=out);

}

2) Mux4Way16

/**
 * 4-way 16-bit multiplexor:
 * out = a if sel = 00
 *       b if sel = 01
 *       c if sel = 10
 *       d if sel = 11
 */
CHIP Mux4Way16 {
    IN a[16], b[16], c[16], d[16], sel[2];
    OUT out[16];

    PARTS:
    Mux16(a=a, b=b, sel=sel[0], out=muxAB);
    Mux16(a=c, b=d, sel=sel[0], out=muxCD);
    Mux16(a=muxAB, b=muxCD, sel=sel[1], out=out);
}

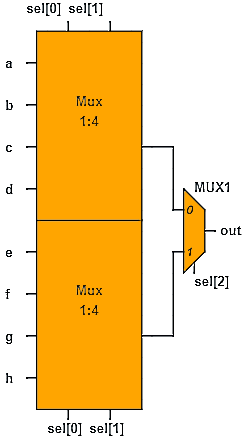

3) Mux8Way16

/**
 * 8-way 16-bit multiplexor:
 * out = a if sel = 000
 *       b if sel = 001
 *       c if sel = 010
 *       d if sel = 011
 *       e if sel = 100
 *       f if sel = 101
 *       g if sel = 110
 *       h if sel = 111
 */
CHIP Mux8Way16 {
    IN a[16], b[16], c[16], d[16],
       e[16], f[16], g[16], h[16],
       sel[3];
    OUT out[16];

    PARTS:
    Mux4Way16(a=a, b=b, c=c, d=d, sel=sel[0..1], out=muxAD);
    Mux4Way16(a=e, b=f, c=g, d=h, sel=sel[0..1], out=muxEH);
    Mux16(a=muxAD, b=muxEH, sel=sel[2], out=out);
}

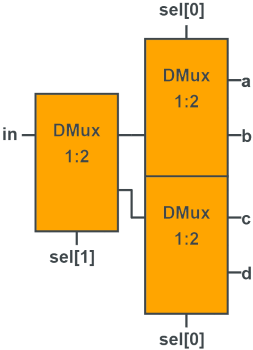

4) DMux4Way

/**
 * 4-way demultiplexor:
 * [a, b, c, d] = [in, 0, 0, 0] if sel = 00
 *                [0, in, 0, 0] if sel = 01
 *                [0, 0, in, 0] if sel = 10
 *                [0, 0, 0, in] if sel = 11
 */
CHIP DMux4Way {
    IN in, sel[2];
    OUT a, b, c, d;

    PARTS:
    DMux(in=in, sel=sel[1], a=dIn0, b=dIn1);
    DMux(in=dIn0, sel=sel[0], a=a, b=b);
    DMux(in=dIn1, sel=sel[0], a=c, b=d);
}

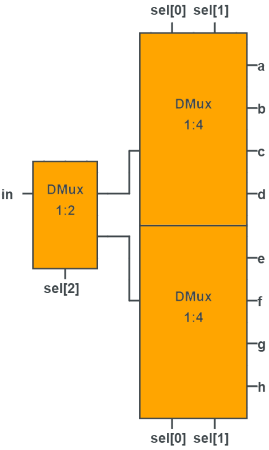

5) DMux8Way

/**
 * 8-way demultiplexor:
 * [a, b, c, d, e, f, g, h] = [in, 0,  0,  0,  0,  0,  0,  0] if sel = 000
 *                            [0, in,  0,  0,  0,  0,  0,  0] if sel = 001
 *                            [0,  0, in,  0,  0,  0,  0,  0] if sel = 010
 *                            [0,  0,  0, in,  0,  0,  0,  0] if sel = 011
 *                            [0,  0,  0,  0, in,  0,  0,  0] if sel = 100
 *                            [0,  0,  0,  0,  0, in,  0,  0] if sel = 101
 *                            [0,  0,  0,  0,  0,  0, in,  0] if sel = 110
 *                            [0,  0,  0,  0,  0,  0,  0, in] if sel = 111
 */
CHIP DMux8Way {
    IN in, sel[3];
    OUT a, b, c, d, e, f, g, h;

    PARTS:
    DMux(in=in, sel=sel[2], a=dIn0, b=dIn1);
    DMux4Way(in=dIn0, sel=sel[0..1], a=a, b=b, c=c, d=d);
    DMux4Way(in=dIn1, sel=sel[0..1], a=e, b=f, c=g, d=h);
}
