RealityKit 입문 - Image Tracking

Image Detection



AR going to read that image and then place an actual watch on my wrist instead of the card

detect an image and you're going to put a virtual object in there



https://www.youtube.com/watch?v=tYj1T-vdJjM

---

Assets - AR Resources

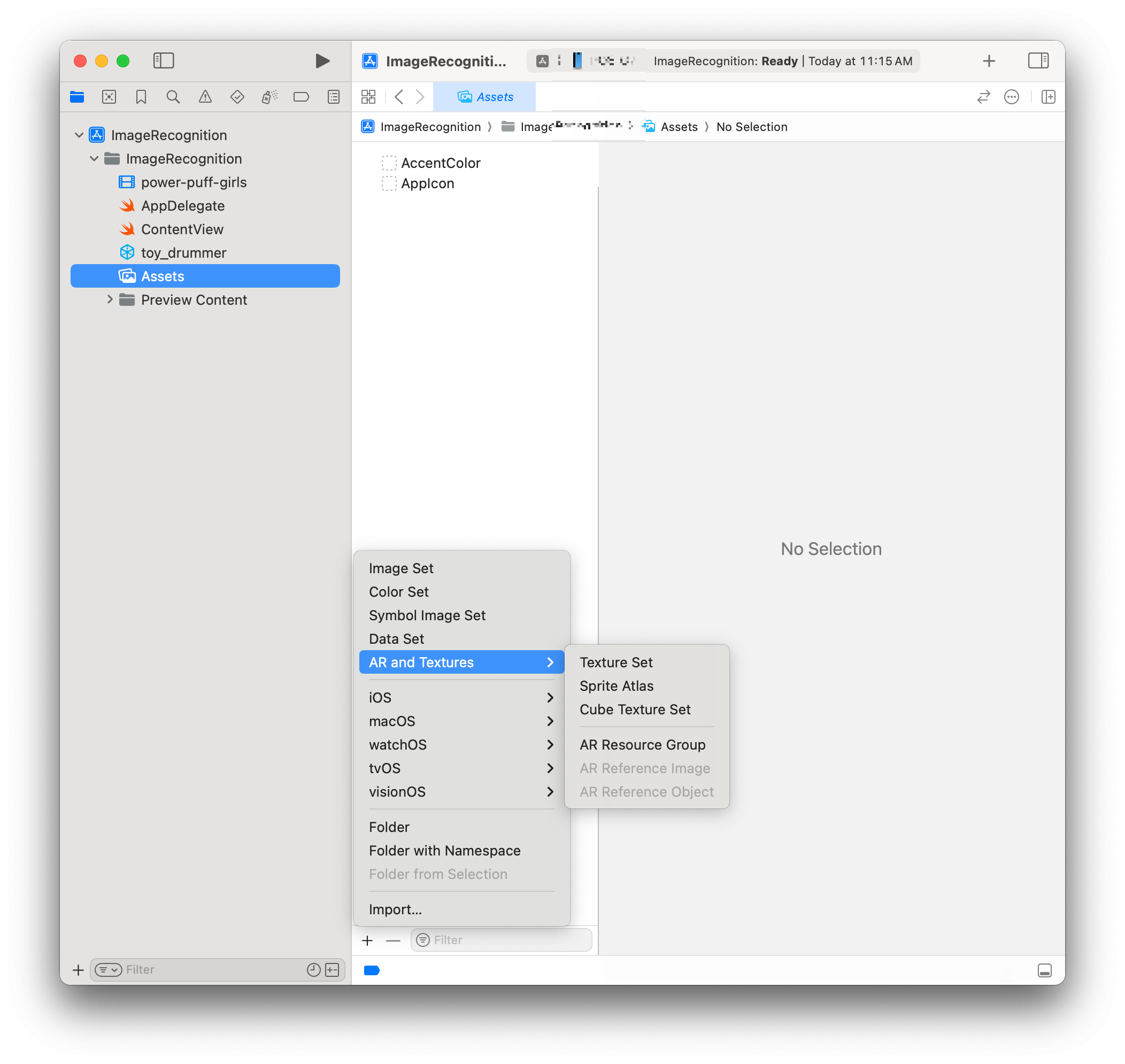

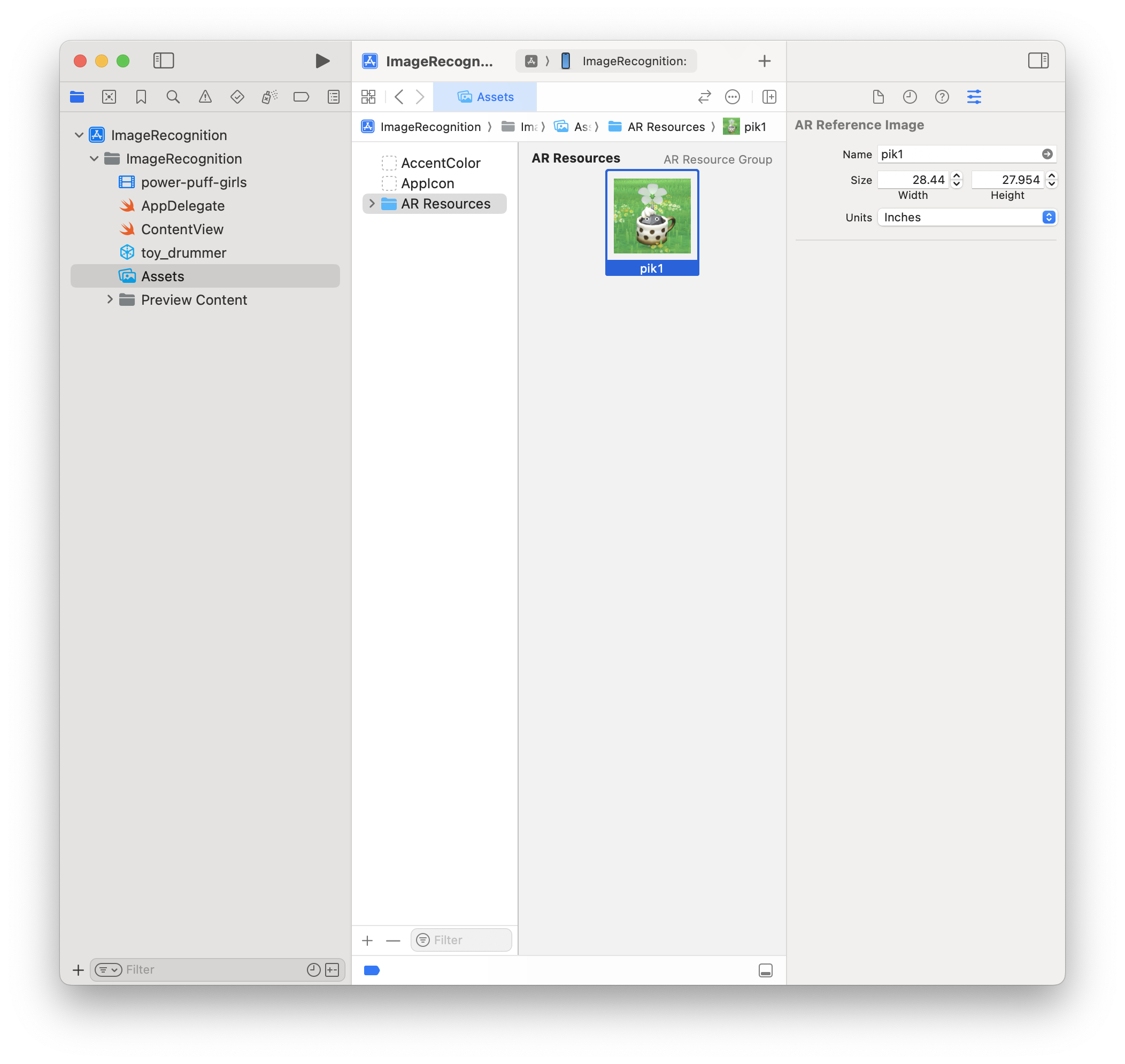

Assets - AR and Texture - AR Resource Group - size 설정



---

Image Detection 으로 Model 띄우기

// AnchorEntity의 내장 image Detect 파라미터(.image(group: "AR Resources", name: "pik1"))

class Coordinator {

    var arView: ARView?
    var cancellable: AnyCancellable?

    func setupUI() {
        guard let arView else { return }

        let anchor = AnchorEntity(.image(group: "AR Resources", name: "pik1"))

        cancellable = ModelEntity.loadAsync(named: "toy_drummer").sink {completion in
            if case let .failure(error) = completion {
                print("Unable to load model \(error)")
            }
        } receiveValue: { entity in
            entity.scale = [0.05, 0.05, 0.05]
            anchor.addChild(entity)
            arView.scene.addAnchor(anchor)
        }
    }
}

---

Image Detection 으로 Video 재생하기

class Coordinator {

    var arView: ARView?
    var cancellable: AnyCancellable?

    func setupUI() {
        guard let arView else { return }
        guard let videoURL = Bundle.main.url(forResource: "power-puff-girls", withExtension: "mp4") else { fatalError()  }

        let player = AVPlayer(url: videoURL)
        let videoMaterial = VideoMaterial(avPlayer: player)

        let anchor = AnchorEntity(.image(group: "AR Resources", name: "ppg"))

        let plane = ModelEntity(mesh: MeshResource.generatePlane(width: 5, height: 5), materials: [videoMaterial])
        //plane.orientation = simd_quatf(angle: .pi / 2, axis: [1, 0, 0])
        anchor.addChild(plane)
        arView.scene.addAnchor(anchor)
        player.play()


    }
}
